Ball Shape Popcorn Machine
Introduction of popcorn machine
This industrial popcorn machine can pop colorful fruity popcorn. Everyone loves popcorn, but traditional popcorn has a singularity. The multi-flavored popcorn meets the different needs of different people, from children to the elderly. It's sweet and crispy, and it won everyone's praise. Especially in cinemas, supermarkets and food courts. They are very popular with customers.

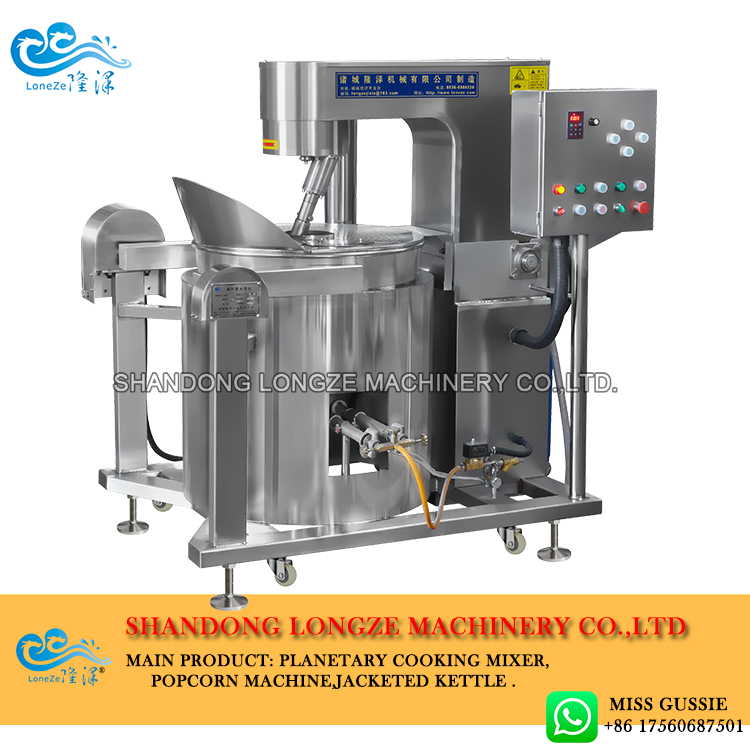

Gas Popcorn Machine
380V/220V/3phase/50Hz or as customized
max. working power 1.5Kw
around 100L, 4mm thickness, φ700mm, half sphere
Approx. 50kg/h capacity
full stainless SUS304 from top down to bottom
LPG gas heating
Fully automatic with auto ignition and gas entry
Planetary mixing to avoid burnt or sticky together
Taiwan made gear reducer, silent and free of maintenance for over 5 years
Directly produce flavored/seasoning/savory popcorns, no need other coating machine
Durable quality to enable continuous operation 24/7.

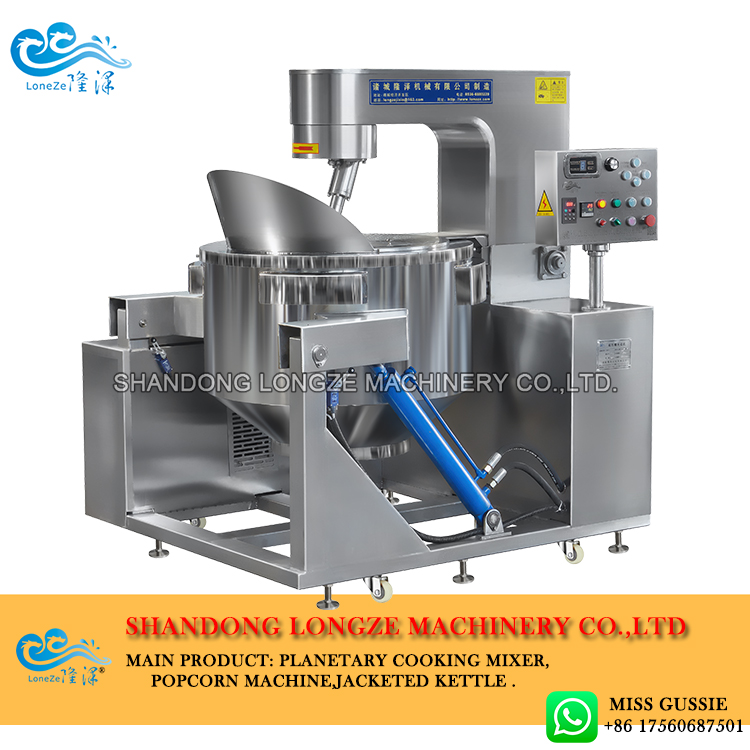

Electric Induction Popcorn Machine
380V/3phase/50Hz or as customized
max. working power 21.5Kw
around 100L, 4mm thickness, φ700mm, half sphere
approx. 75kg/h capacity
full stainless SUS304 from top down to bottom
electromagnetic induction heating
fully automatic through control panel
temperature is under monitoring and controllable
planetary mixing to avoid burnt or sticky together
Taiwan made gear reducer, silent and free of maintenance for over 5 years
directly produce flavored/seasoning/savory popcorns, no need other coating machine
durable quality to enable continuous operation 24/7.

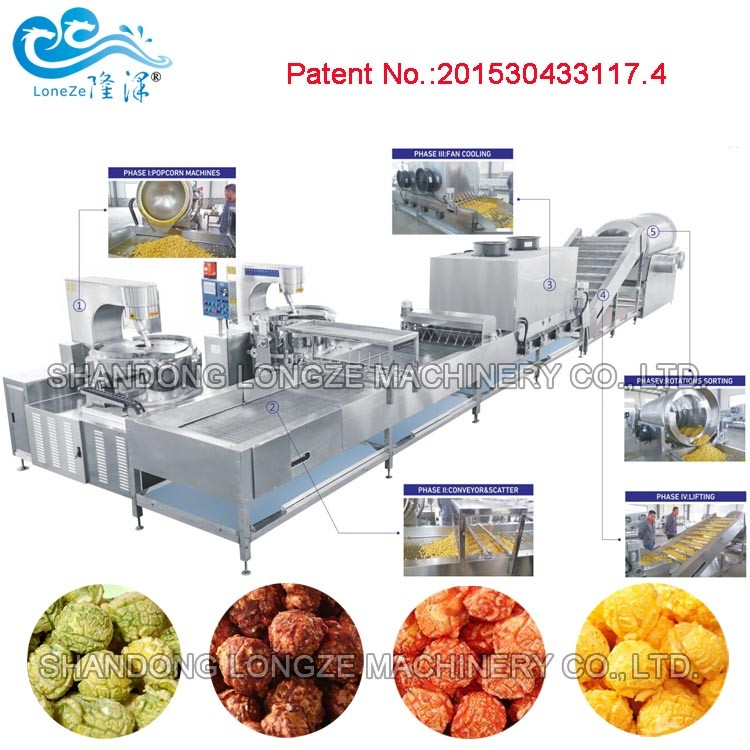

Features of CE Certificate Commercial Full Automatic Caramel Mushroom Popcorn Production Line
The whole system runs automatically after turning on power.
Functions of popcorn production line mainly include: conveying, detaching, cooling and sifting.
Making popcorn cool enough and be ready for packaging.
Powerful fans and side fans are equipped wherever required to make sure better cooling effect.
All parts are made of stainless steel SUS304 (even for base plates and bolts), world-known suitable steel for food materials, durable and easy to clean .
Heavy-duty casters are installed for easy transfer and movement.
Durable motors can work constantly 24/7.
Variable conveying speed and sifting speed, adjustable via control panel.
Product details
1.User-friendly Control Panel
German Siemens PLC system can automatically control heating power, heating time, agitation speed, mixing arm lifting, popcorn discharging, etc. Control buttons with waterproof press buttons.
2.Unique Mixing
German high technology is introduced for electric induction heating system, highly increasing heating efficiency and therefore shortening the popping process
3.Automatic Ignition
Source fire is ignited automatically with press button, and gas is also released automatically with electromagnetic valve to control precisely the required heating for popping.
4.Full Combustion
Pressure burner can provide strong flames with less gas consumption. Full combustion shows blue color flames. Thick fireproofing material provides good insulation of heating and prevent loss of heating energy.
Inspection and maintenance of popcorn machine
1. Turn on the power switch of the popcorn machine and check whether the short-circuit fuse of the device is broken.
2. Turn on the heating switch of the popcorn machine, the pot body is not hot, and the heating indicator light does not light up, please check whether the wiring of the heater in the pot body of the popcorn machine is faulty, check the failure of the temperature controller, and the wiring of the hob is short-circuited.
3. If the heating indicator light of the popcorn maker does not go out for a long time and the temperature is too high, check the failure of the thermal thermostat, you should re-adjust the angle of the thermal thermostat to 180±10℃ or replace the thermal thermostat .
4. If the lighting thermostat switch of the popcorn maker does not turn on after working, replace the bulb. If the thermostat of the popcorn maker has no temperature, check whether the bottom thermostat is short-circuited.
5. If the metal sensing surface of the popcorn machine is too large, please check whether there is a good grounding device.

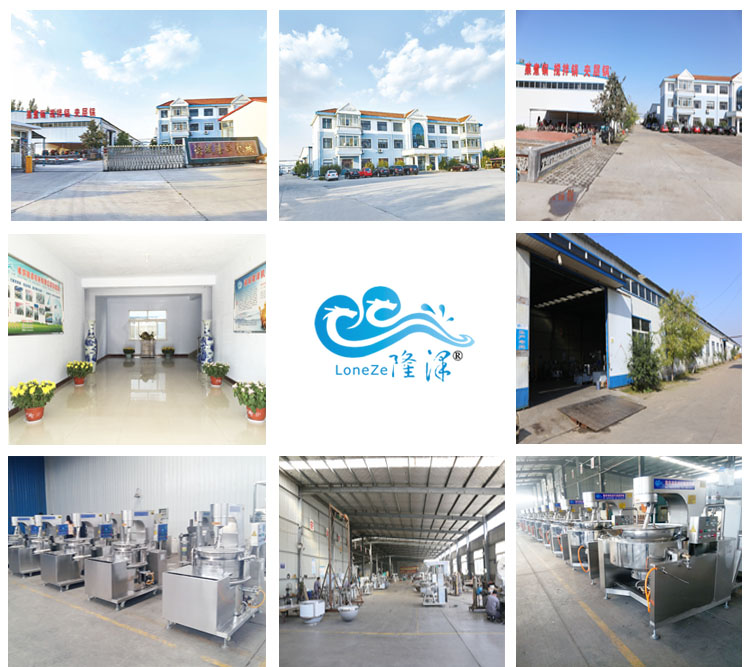

Shandong longze machinery Co.,LTD is a collection of scientific research,production,sales and service in a body's enterprise.Loading in the famous hometown of dinosaur---zhucheng,the company over the years dedicated to the study trend of the development of food industry,the traditional manual mill processing for automation,standardization of production change.Through automation design and manufacture for enterprise to save manpower,improve the production rate ,reduce the production coast.Service clients cover the baking industry,fillings making meat cooked food industry,to provide heating ,vacuum concentration,disinfection and other series of cooking making equipment.My company has machinery manufacturing ,food processing,engineering installation and so on all kinds of talents ,build a comprehensive service team ,makes every effort to contribute the perfect service.
