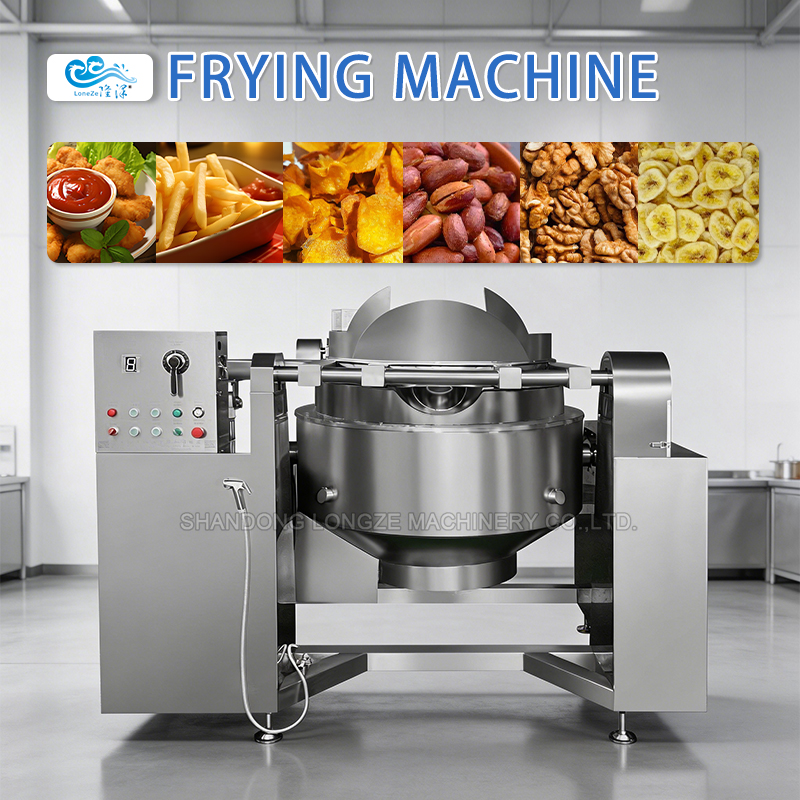

Industrial Large Capacity Single Pot Batch Fryer — 200L–1000L (Gas, Induction, Thermal Oil)
Industrial Large Capacity Single Pot Batch Fryer — 200L–1000L (Gas, Induction, Thermal Oil)
2026-04-02 14:23Large-scale food producers and central kitchens require consistent frying quality, high throughput, and efficient oil management . Our
Contact Number：+86 13070769155Product Details
Large-scale food producers and central kitchens require consistent frying quality, high throughput, and efficient oil management. Our industrial large-capacity single-pot batch fryer (200L–1000L) offers three heating modes (gas, electric induction, electric thermal oil), automatic lifting basket, adjustable stirring, and an oil/material separation design—built for B2B food factories, catering hubs and snack production lines.
Designed for Industrial Production — Key Specifications & Use Cases
*Capacity range: 200L / 300L / 400L / 600L / 800L / 1000L
*Heating types: Gas | Electric Induction | Electric Thermal Oil
*Core components: single pot (frying tank) + internal filtration frame
*Automation: automatic lifting filtration basket; optional tilting pot or oil pump discharge
*Stirring: adjustable-speed agitator (prevent sticking, ensure uniform color)
*Construction: food-grade 304 stainless steel contact surfaces
Applications: potato chips, banana/corn chips, fried nuts (peanuts, cashews), battered proteins (chicken nuggets), spring rolls, fish fillets, central kitchen batch frying.
Heating Options — choose per site & energy cost
Gas Heating — quick ramp-up and cost-efficient where gas is available.
Electric Induction — high thermal efficiency, precise PID temperature control.
Electric Thermal Oil — best uniformity, reduces hot-spots and prolongs oil life.
Oil and Material Separation Design
The fryer consists of two main components:
*Frying pot
*Internal filtering frame
Both structures are designed to separate food residues from frying oil, reducing oil contamination and improving product quality. This design helps extend oil service life and reduce production costs.
Adjustable Stirring System for Uniform Frying
The machine is equipped with a built-in stirring system with adjustable speed.
Benefits include:
*Prevents food sticking or clumping
*Ensures even heat distribution
*Improves product appearance and taste
Automatic stirring during frying is commonly used in industrial batch fryers to ensure uniform drying and cooking of materials.

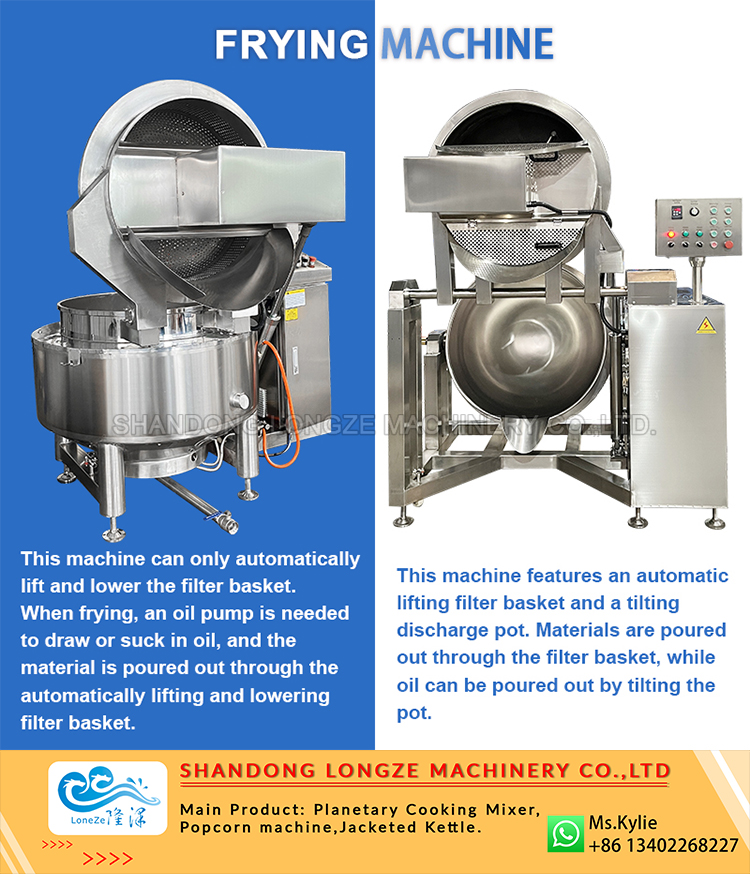

Two Fryer Configurations Available
To meet different factory requirements, this industrial fryer is available in two structural designs.
Type 1: Automatic Lifting Basket + Oil Pump Discharge
*Fried products discharged through the automatic lifting basket
*Frying oil drained through an oil pump system
*Suitable for factories with centralized oil filtration systems
Type 2: Automatic Lifting Basket + Tilting Fryer Pot
*Products discharged through lifting basket
*The fryer pot can tilt automatically to pour out oil
This structure is ideal for operations that require frequent oil replacement or cleaning.
Technical Specifications at a Glance
Advantages for Food Manufacturers
*PLC system, Can record 16 sets of processing techniques, enabling one-click switching and remote control.
*High Production Efficiency, Large oil volume ensures fast temperature recovery when food is added.
*Consistent Product Quality, Precise temperature control ensures uniform color, crispness, and texture.
*Reduced Labor Cost, Automatic lifting basket and stirring system minimize manual operations.
*Durable Food-Grade Construction, The machine is made of 304 stainless steel, ensuring long service life and compliance with food hygiene standards.(Customizable 316 material）
Our Comprehensive Service Approach
Pre-Sale Consultation
We understand that purchasing industrial equipment is a significant investment. Our pre-sale process includes:
Needs assessment: We analyze your production volume, product types, and facility constraints
Layout planning: Our engineers suggest optimal kitchen configurations
Sample testing: Send your products for test frying in our facility
During Sale Support
Customization: We adjust specifications to your exact requirements
Documentation: Complete technical manuals, CAD drawings, and electrical schematics
Export logistics: Handle all shipping documentation and coordination
After-Sale Service
Installation guidance: Remote service guidance, lifetime free maintenance
Operator training: Comprehensive training for your staff
Spare parts inventory: Critical parts stocked for quick shipment
Technical support: 24/7 availability for urgent issues
Preventive maintenance: Scheduled service programs to maximize uptime
Why Manufacturers Trust Shandong Longze
With 14 years of dedicated experience in food processing machinery, we've learned what matters most to B2B clients:
Reliability: Equipment that runs shift after shift without failure
Efficiency: Designs that minimize oil consumption and energy use
Compliance: Machines built to international food safety standards
Partnership: A team that supports your growth long after purchase
Contact our sales team today to discuss your capacity requirements and receive a customized quotation for the model that fits your production goals.
Designed for Industrial Production — Key Specifications & Use Cases
*Capacity range: 200L / 300L / 400L / 600L / 800L / 1000L
*Heating types: Gas | Electric Induction | Electric Thermal Oil
*Core components: single pot (frying tank) + internal filtration frame
*Automation: automatic lifting filtration basket; optional tilting pot or oil pump discharge
*Stirring: adjustable-speed agitator (prevent sticking, ensure uniform color)
*Construction: food-grade 304 stainless steel contact surfaces
Applications: potato chips, banana/corn chips, fried nuts (peanuts, cashews), battered proteins (chicken nuggets), spring rolls, fish fillets, central kitchen batch frying.
Heating Options — choose per site & energy cost
Gas Heating — quick ramp-up and cost-efficient where gas is available.
Electric Induction — high thermal efficiency, precise PID temperature control.
Electric Thermal Oil — best uniformity, reduces hot-spots and prolongs oil life.
Oil and Material Separation Design
The fryer consists of two main components:
*Frying pot
*Internal filtering frame
Both structures are designed to separate food residues from frying oil, reducing oil contamination and improving product quality. This design helps extend oil service life and reduce production costs.
Adjustable Stirring System for Uniform Frying
The machine is equipped with a built-in stirring system with adjustable speed.
Benefits include:
*Prevents food sticking or clumping
*Ensures even heat distribution
*Improves product appearance and taste
Automatic stirring during frying is commonly used in industrial batch fryers to ensure uniform drying and cooking of materials.
Two Fryer Configurations Available
To meet different factory requirements, this industrial fryer is available in two structural designs.
Type 1: Automatic Lifting Basket + Oil Pump Discharge
*Fried products discharged through the automatic lifting basket
*Frying oil drained through an oil pump system
*Suitable for factories with centralized oil filtration systems
Type 2: Automatic Lifting Basket + Tilting Fryer Pot
*Products discharged through lifting basket
*The fryer pot can tilt automatically to pour out oil
This structure is ideal for operations that require frequent oil replacement or cleaning.
Technical Specifications at a Glance
| Heating Method | Gas/Electric Induction/Electric Thermal Oil | ||||||
| Pot Diameter | 800mm | 900mm | 1000mm | 1100mm | 1200mm | 1300mm | 1400mm |
| Inner Basket Diameter | 700mm | 800mm | 900mm | 1000mm | 1100mm | 1200mm | 1300mm |
| Loading Capacity |
200L |
300L | 400L | 500L | 600L | 800L | 1000L |
| Optional Configuration | Agitator | Bottom Discharge | PLC Programming | Temperature Control | Lid | Tablet Pressing | High Pressure Water Gun |
Advantages for Food Manufacturers
*PLC system, Can record 16 sets of processing techniques, enabling one-click switching and remote control.
*High Production Efficiency, Large oil volume ensures fast temperature recovery when food is added.
*Consistent Product Quality, Precise temperature control ensures uniform color, crispness, and texture.
*Reduced Labor Cost, Automatic lifting basket and stirring system minimize manual operations.
*Durable Food-Grade Construction, The machine is made of 304 stainless steel, ensuring long service life and compliance with food hygiene standards.(Customizable 316 material）
Our Comprehensive Service Approach
Pre-Sale Consultation
We understand that purchasing industrial equipment is a significant investment. Our pre-sale process includes:
Needs assessment: We analyze your production volume, product types, and facility constraints
Layout planning: Our engineers suggest optimal kitchen configurations
Sample testing: Send your products for test frying in our facility
During Sale Support
Customization: We adjust specifications to your exact requirements
Documentation: Complete technical manuals, CAD drawings, and electrical schematics
Export logistics: Handle all shipping documentation and coordination
After-Sale Service
Installation guidance: Remote service guidance, lifetime free maintenance
Operator training: Comprehensive training for your staff
Spare parts inventory: Critical parts stocked for quick shipment
Technical support: 24/7 availability for urgent issues
Preventive maintenance: Scheduled service programs to maximize uptime
Why Manufacturers Trust Shandong Longze
With 14 years of dedicated experience in food processing machinery, we've learned what matters most to B2B clients:
Reliability: Equipment that runs shift after shift without failure
Efficiency: Designs that minimize oil consumption and energy use
Compliance: Machines built to international food safety standards
Partnership: A team that supports your growth long after purchase
Contact our sales team today to discuss your capacity requirements and receive a customized quotation for the model that fits your production goals.
