Industrial Full Automatic Caramel Popcorn Production Line

Industrial Full Automatic Caramel Popcorn Production Line

2020-12-10 16:23

Contact Number：+86 13070769155
Product Details

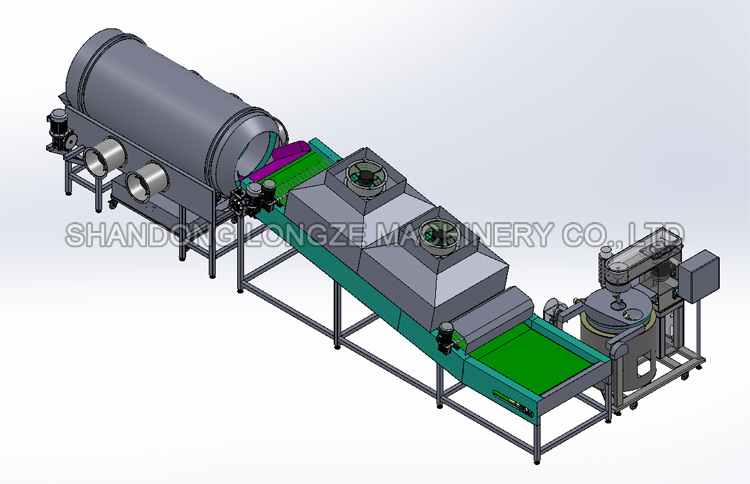

caramel popcorn production line

Heating Method

Longze popcorn machine has a variety of heating methods: gas and electromagnetic heating methods. It is recommended to use liquefied gas tanks for gas, not natural gas. Electromagnetic imported German Infineon technology from Longze Machinery. Both heating methods can increase the temperature in a short time to reach the popping temperature of the spherical corn. The two can cool down instantly, so that the popcorn that has been popped will not be too hot and burnt.
Stirring method

The mixing system of Longze intelligent popcorn machine adopts the combination of rotation and revolution, and its transmission ratio is not an integer transmission ratio to ensure that there are no blind spots in the pot. Use advanced transmission and sealing structure to make the transmission part and the pot clean and hygienic. The automatic/hydraulic type of this series of equipment uses hydraulic thrust to turn the stirring arm over, without disassembly and assembly of the stirrer, and then uses the hydraulic thrust to tilt the pot body, which is easy to enter and exit the raw materials and save manpower. The stepless frequency converter can mix high viscosity products Uniform heating increases heat. It has the characteristics of easy operation, high work efficiency, low energy consumption, long service life, compact structure, and convenient maintenance. It is a mixer with excellent performance.
popcorn production line
How to make popcorn ?

1. Ignite, put oil, adjust mixing speed
2. Put sugar and corn, adjust the speed to fast
3. Turn off the heat after the corn pops in the pot
4. Raise the stirring arm and turn the pot to discharge
5. Select low speed first, and then select high or low speed according to the process. It is strictly forbidden to adjust the speed of the reducer when the motor is stopped.
Features

1. 360° planetary stirring and frying (the stirring head can rotate and revolve);
2. Easy to operate (automatic ignition, automatic lifting, automatic pan out);
3. Safe and comfortable operation (centralized waste discharge on the back);
4. Stir/mix evenly (cream, caramel, chocolate and other flavors are made in one pot);
5. Gas combustion is convenient for heating, and is not limited by factory voltage;
6. Electromagnetic heating is energy-saving and environmentally friendly, saving 20%-30% of electricity compared with ordinary electric heating, heating up quickly, and temperature is controllable;
7. The inner and outer pots are all made of stainless steel, with beautiful appearance, compact structure and easy cleaning.

Technical Parameter
Dimensions 1700*1500*1200mm (Can be customized)
Power 1.5KW
Weight 1000KG
Production Capacity About 300KG
Heating Method Gas,Electric Industion
Motor Power 2.2KW
Voltage 380V
Speed 0-60rpm
Temperature 0-260 °C
